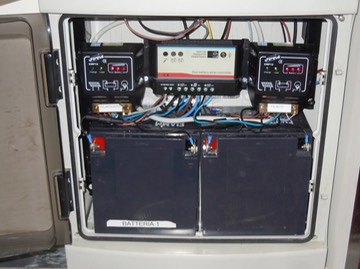

The pictures describe an implementation to power automation and burglar alarm systems using solar cells, the power supplies are used as backup when needed. The charge condition of the batteries are constantly monitored by solar charge controllers to improve operation during long black out times and periods of poor sunlight.
